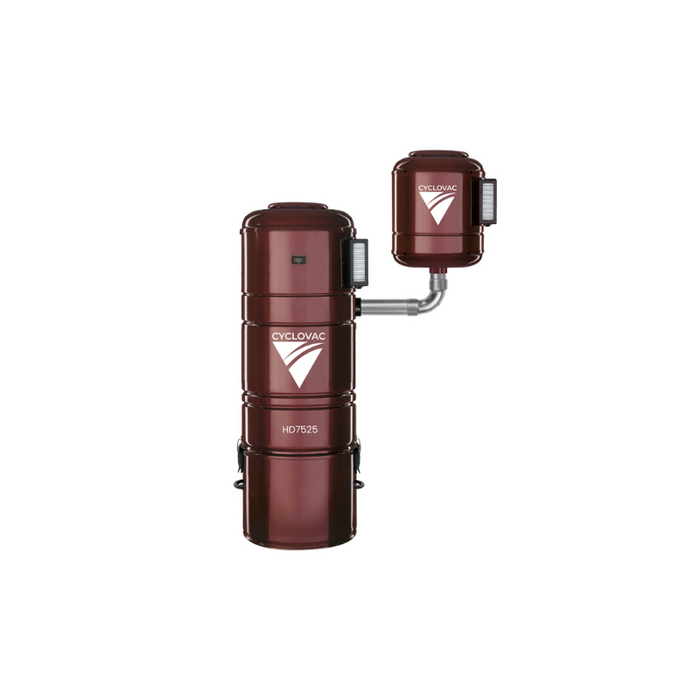

Model : HD7525
This high performance central vacuum model with 2 separate motor units can be connected in series (recommended for Retraflex®) or in parallel depending on cleaning needs. Ideal for effective cleaning with very large surfaces, a long piping system, use with long hoses or an installation with multiple regular or Retraflex® outlets.
This model can’t be installed in a closed space. For specific details regarding the installation of this model, refer to the user manual.
Specifications
- Airwatts 1354
- Decibels 72
- Air flow 136.7 CFM | 232.3 CMH
- Water lift 254 in | 6452 mm
- MAX amps 14.6
- Voltage 240
-
Turbines 4
Series
-
Hybrid
- Bag capacity 5.8 gal US | 22 L
- Canister capacity 6.2 gal US | 23.3 L
- Height 41.8 in | 106.2 cm
- Diameter 14.1 in | 35.8 cm
-
Weight 37.5 lb | 17 kg
-
In Parallel
- Airwatts 1354
- Decibels 70
- Air flow 273.4 CFM | 464.5 CMH
- Water lift 149.2 in | 3790 mm
- MAX amps 14.6
- Voltage 240
- Stage 4
-
-
Second unit
- Bag capacity 0 gal US | 0 L
- Canister capacity 0 gal US | 0 L
- Height 17 in | 43.2 cm
- Diameter 11 in | 27.9 cm
- Weight 15.8 lb | 7.2 kg
